Product Description
Applications

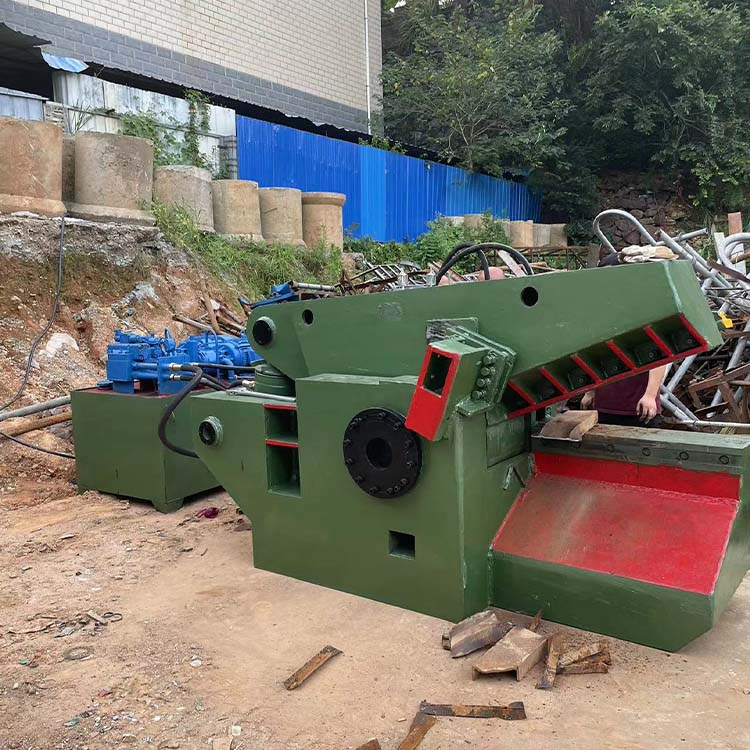

This series of machines are suitable for metal recycling processing factory,the automobile dismantling plants,smelting foundry industry.This series of models cut off the steel of various shapes and various metal structures in cold state and processed into processed into ualified burden
Features
1.It adopts hydraulic drive;safety performance is reliable and easy to operate.
2.Work blade length:400 mm,600 mm,700 mm and 800 mm,1000 mm,1200 mm and 1600 mm and 1800 mm;
3.Shearing force force from 63 tons to 600 tons of the eleven grade are suitable for different size requirements of the user to select.
4.The diesel engine can be used as the power for installation without the use of foot screws and no power supply.
Product Parameters
Model | (Ton) | (mm) | (mm) | ( KW ) | (mm) | |
Q43-63 | 63 | 320 | 800 | 7.5 | 30*30mm | φ20 |
Q43-100 | 100 | 320 | 800 | 11 | 40*40mm | φ35 |
Q43-120 | 120 | 320 | 800 | 15 | 45*45mm | φ45 |
Q43-160 | 160 | 320 | 800 | 18.5 | 55*55mm | φ50 |
Q43-200 | 200 | 440 | 000) | 22 | 65*65mm | φ75 |
Q43-250 | 250 | 450 | 1000/1200 | 2*15 | 70*70mm | φ80 |
Q43-315 | 315 | 450/520 | 200 | 2*18.5 | 80*80mm | φ85 |
Q43-400 | 400 | 660 | 1200/1500 | 2*22 | 90*90mm | φ95 |
Q43-500 | 500 | 710 | 1600 | 2*30 | 90*90mm | φ100 |
Q43-630 | 630 | 730 | 1800 | 2*45 | 105*105mm | φ120 |
