Product Description
Applications

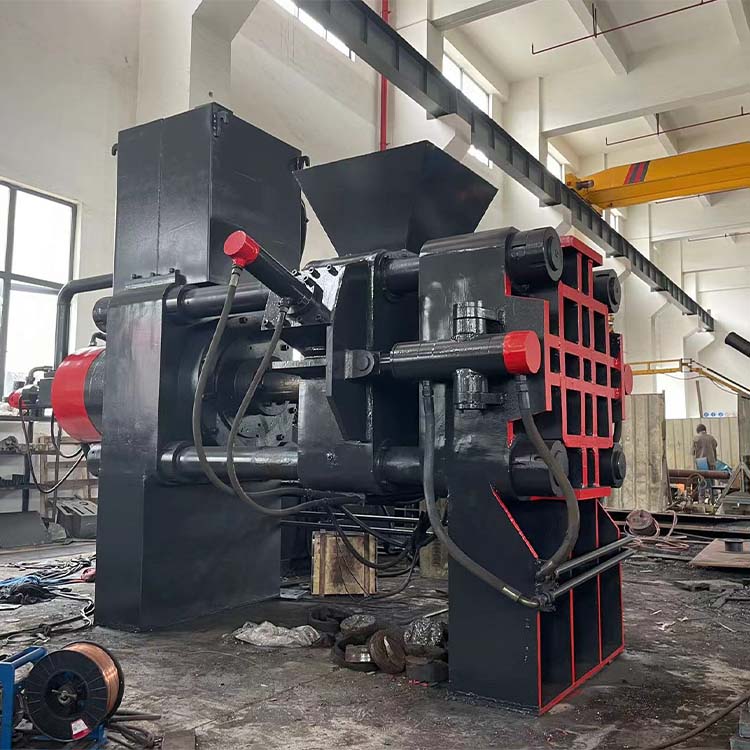

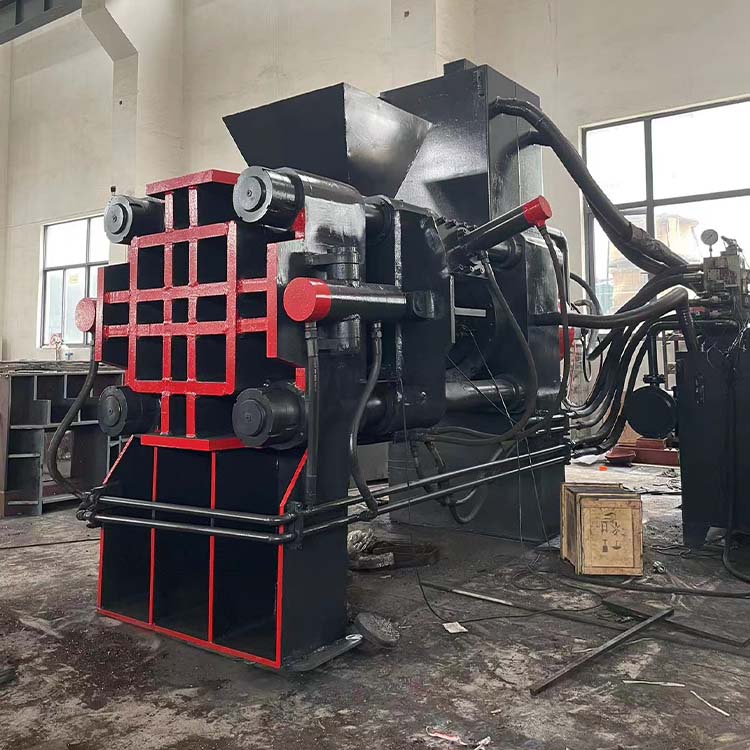

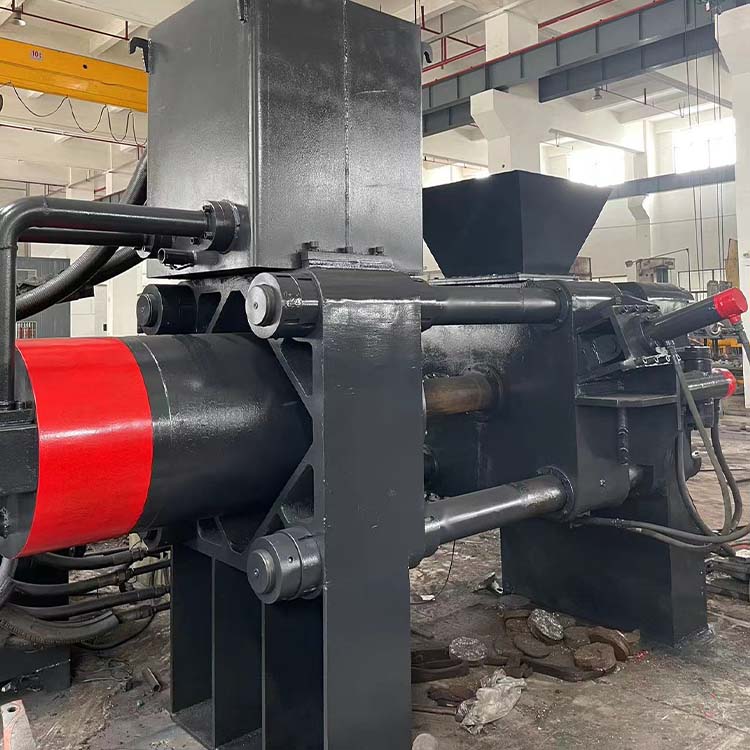

Y83 series hydraulic metal cake crumbs machine is mainly used for steel scrap,iron scrap.copper scrap and aluminum scrap
and other costs of high-density cylindrical mass repression to facilitate recycling and smelting,especially after the suppression of
alternative cast iron cast Iron.
Features
1.Hydraulic drive,smooth,vibration-free,safe and reliable
2.Simple equipment foundation
3.PLC automatic control,the user can choose manual or automatic operation
Product Parameters
Horizontal
Model | (Ton) Nominal Force | (mm) Briquet size | (Ton/hr) Production | (kw) Power |
Y83W-4000 | 400 | φ140×(70~140) | 2~3.5 | 2×30 |
Y83W-6300 | 630 | φ200×(160~200) | 4.5~5.5 | 2×45 |
Y83W-10000 | 1000 | φ300×(220~270) | 9~11 | 3×55 |
Vertical
Model | (Ton) Nominal Force | (mm) Briquet size | (Ton/hr) Production | (kw) Power |
Y83-2500 | 250 | φ110×(50~70) | 0.6~0.8 | 22 |
Y83-3150 | 315 | φ120×(50~70) φ140×(50~70) |
0.8~1.1
| 30 |
Y83-4000 | 400 | φ140×(70~100) φ160×(70~100) |
1.3~1.6
|
37
|
Y83-5000 | 500 | φ160×(70~100) φ180×(70~100) |
1.7~2.5
|
45
|
Y83-6300 | 630 | φ180×(100~140) φ200×(100~140) | 2.8~3.5 | 2*37 |
